Temperature Sensor GEL 2161

temperature sensor gel 2161

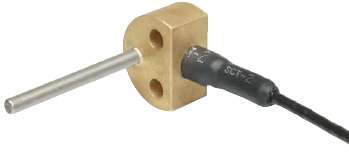

Temperature sensor GEL 2161

Description

  • Compact and robust sensor can be used in harsh applications
  • Cable finishing in combination with a speed sensor possible
  • Simple flange mounting


Features

  • Measuring temperature -40°C to +250°C
  • Fire behavieur according to DIN 5510 and NF F16-101
  • Protection class IP 68
  • Type testing according to EN 50155

Fields of application

  • rail vehicle industry
  • automation

Technical data

Cable typeABC
Electrical Data
Measuring elementPt100 / Pt1000 (DIN EN 60751 class B)
ToleranceTolerance class B
Messuring current0.3 to 1 mA (1)
Electromagnetic compatibility Rail vehicles: EN 50121-3-2
Insulation (EN 60439-1)500 V AC
Mechanical data
Measuring temperature measuring head-40°C to +250°C
Operating temperature (housing / cable)-40°C to +150°C-40°C to +120°C
Storage temperature-40°C to +120°C
Protection classIP 68
Vibration resistance (EN 61373 cat. 3)1000 m/s2
Type testing (EN 50155)yes
Material flangebrass
Material measuring tubestainless steel
Diameter measuring tube200 m/s5 mm (6 mm on request)
Active length measuring head10 mm
Weight sensor (incl. 2 m cable)approx.100 g
Cable
Electrical connection cable screened (specification on request),
cable outlet straight
Cable length≤ 100 m
Cable diameter3.8 mm4.8 mm5.4 mm
Cable cross section4 x 0.14 mm24 x 0.34 mm2
Cable TypeLK1112LK1087LK1088
Bending radius static / dynamic10 x cable diamete
Fire behaviour
DIN 5510 and NF F16-101

(1) A higher measuring current may lead to inacurracies in measurement due to internal heat dissipation, up to 3 mA for Pt1000 and 10 mA for Pt100 is possible.

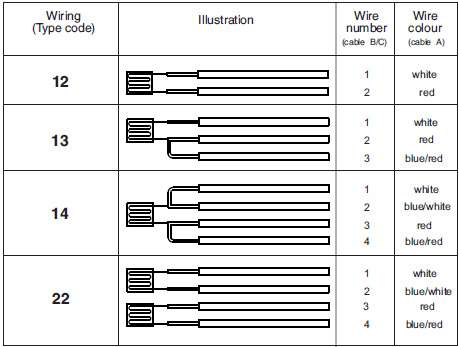

Wiring Diagram

Temperature sensor gel 2161 wiring diagram - Lenord & Bauer Rail Speed Sensors and Rotary Pulse Encoders

Dimensions

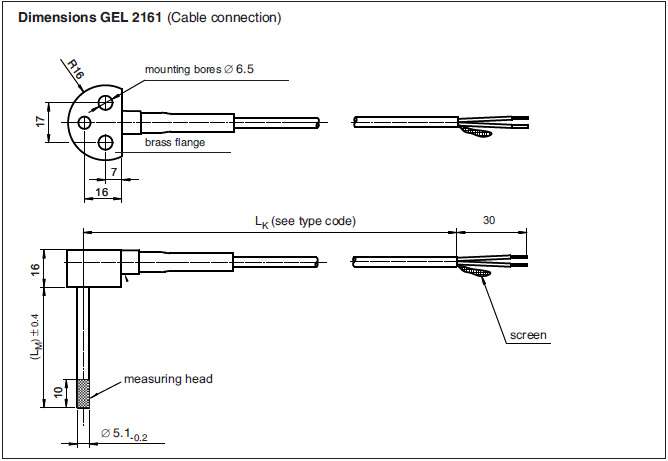

Dimensions Gel 2161 (Cable connection)

Temperature sensor gel 2161 cableconnection - Lenord & Bauer Rail Speed Sensors and Rotary Pulse Encoders

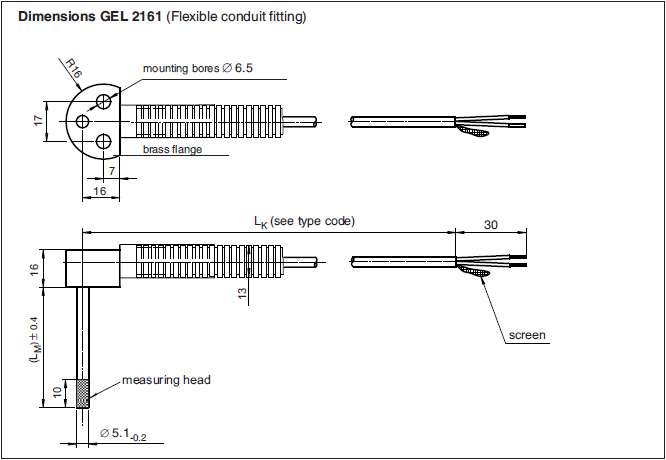

Dimensions Gel 2161 (Flexible conduit fitting)

Temperature sensor gel 2161 flexible conduit fitting - Lenord & Bauer Rail Speed Sensors and Rotary Pulse Encoders

Sample installation

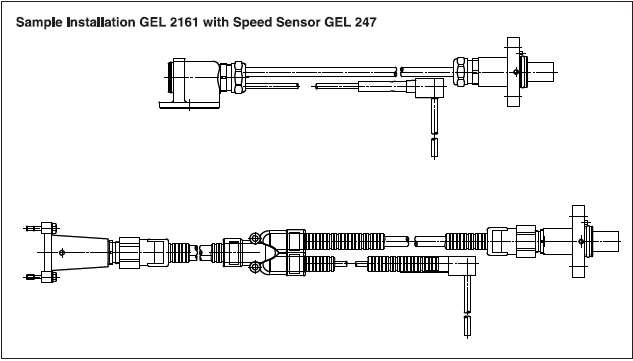

Sample Installation Gel 2161 Drawing with Speed sensor Gel 247

Temperature Sensor 2161 Installation Drawing - Lenord & Bauer Rail Speed Sensors and Rotary Pulse Encoders

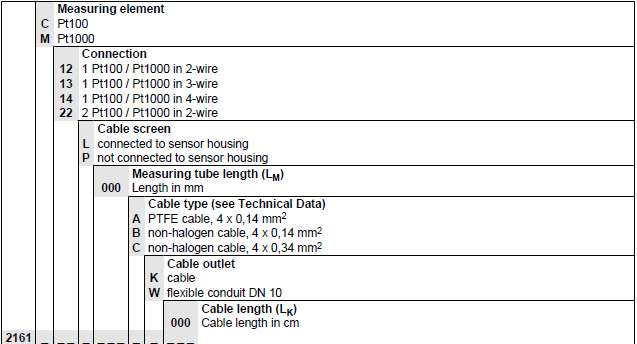

Type Code

Temperature Sensor 2161 typecode - Lenord & Bauer Rail Speed Sensors and Rotary Pulse Encoders

Notes: For a special customized version a Y-No. will be created. A special version 2161Yxxx is manufactured according to a drawing or application description and could differ from the technical standard specification.
