Never before has it been this easy to measure your roller alignment!

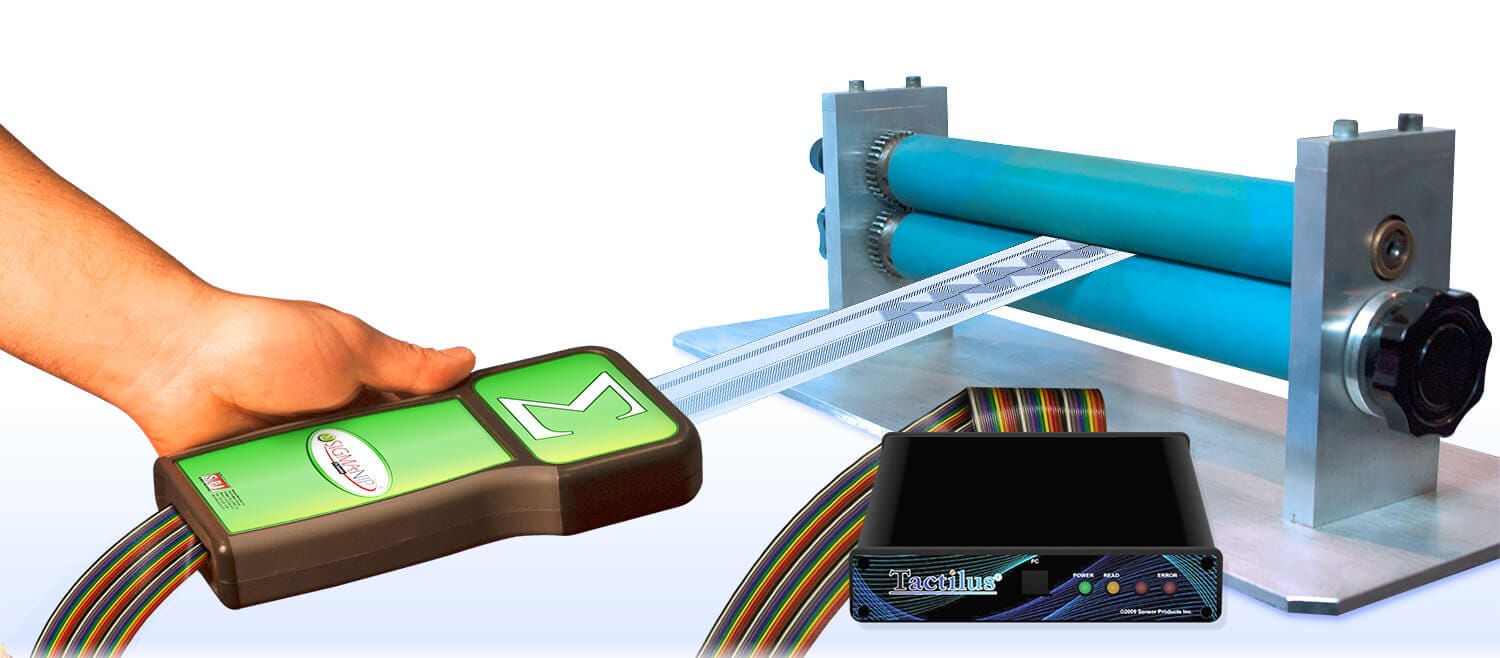

Sigma-Nip® P-Series is a powerful new Windows based system that allows the quick and easy diagnosis of roller conditions � namely the measurement of nip contact pressure. With minimal investment and no prior experience a user can quickly and accurately record spot nip pressure (contact point between rollers) at any section of your web or sheetfed process. Sigma-Nip® P�s sensing capability is as sensitive as it�s case is durable � its ergonomic shell is impact hardened and water resistant.
No more time consuming and inaccurate nip measurements with carbon paper. Now nip readings can be determined instantaneously and adjustments made while the sensor is between your rolls! Sigma-Nip® P-Series is also economical, just like your carbon paper; the sensor elements that connect into the Sigma-Nip® P-Series device are designed to provide thousands of readings before replacement by the user is necessary.
Variations of pressure shown on the Sigma-Nip® P-Series software.
Benefits
- Measures nip pressure level in the machine direction
- Reveals roller parallelism & planarity to aid in roller alignment
- Indicates both nip width and nip pressure
- Reveals gaps, flaws and unevenness in the roll surface
- Hand held, lightweight, and inexpensive
- USB compliant Windows® software based device
Areas of Use
- Coaters
- Printers
- Small Laminators
Specifications |
|
|---|---|
| Principle | Resistive Ink |
| Substrate Material | PET |
| Active Sensor Length | 4.21 in. (10.7 cm) |
| Sensor Thickness | 15 mils (0.381 mm) |
| Useable Temp. Range | 0 to 250°F (-17.7 to 121°C) |
| Pressure Range | 40 – 1,000 PSI (2.81 – 70.31 kg/cm2 |
| Max. Exposure Time | 300 Sec. |
| Resolution | 0.02 in. (0.5 mm) |
| Sensing Points | 168 |
