Reveal Pressure Between Contacting Surfaces
Surface Contact Stress
Quickly Identify and Resolve Surface Contact Stress Problems
Fuji Prescale® is a pressure indicating sensor film used to characterize pressure between contacting or impacting surfaces. It changes color to reveal both pressure distribution and pressure magnitude.
Prescale is well suited for surface pressure mapping applications from 2 PSI all the way up to 43,000 PSI across a series of distinct pressure range films.

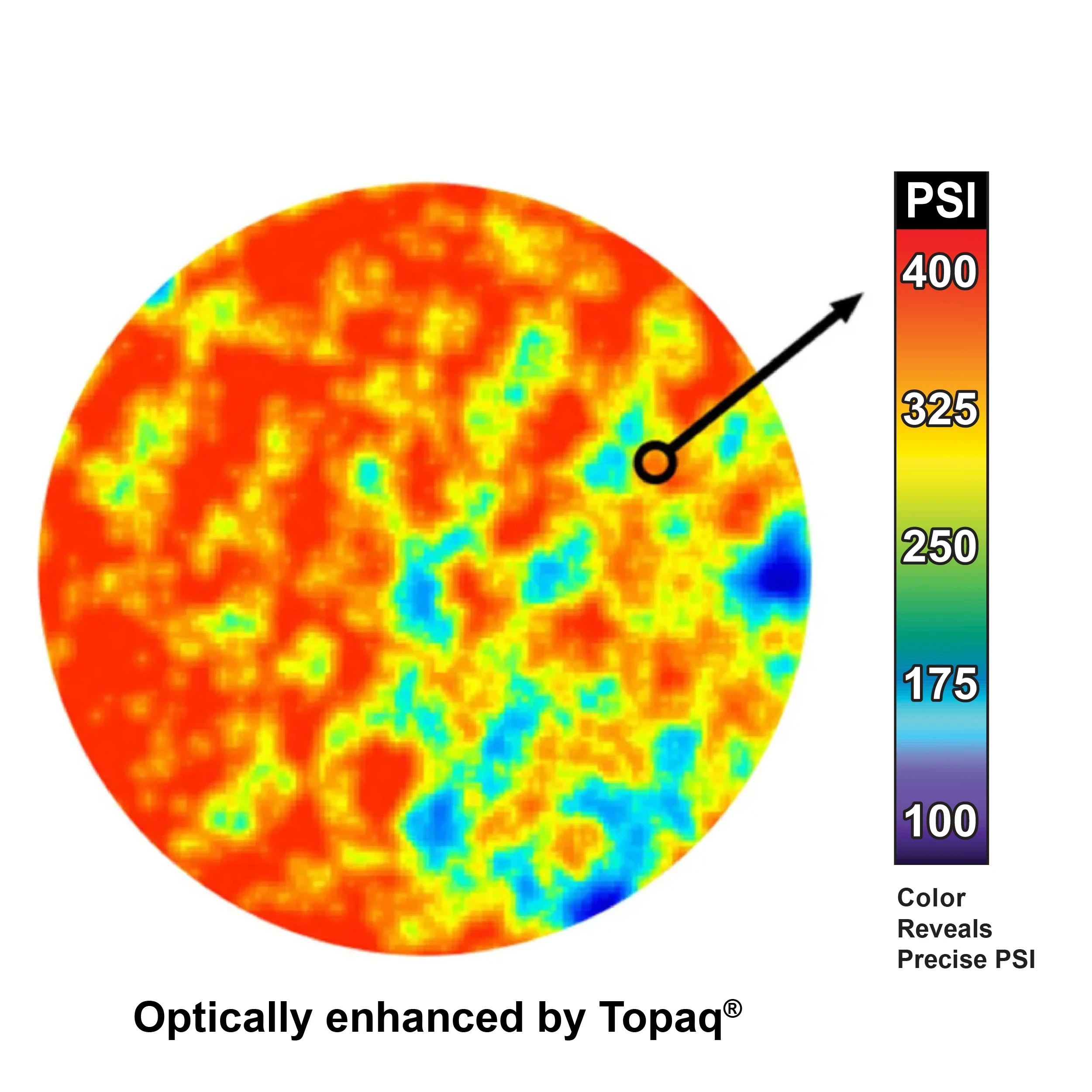

Simply place the sensor film sheet between any two contacting or impacting surfaces, apply force, remove the film sheet, and immediately it reveals a pressure profile of interfacial pressure distribution.
The film is thin, flexible, permanent, and easy to archive.
Request a Free SampleIndustries We Serve
Packaging
- Nip Impression
- Heat Sealing
Automotive
- Clutch / Brake
- Tire Tread Footprint
- Impact Pressure
- Door & Seal Contact
- Bolted Joint / Gasket / O-Ring
- Adhesive Bonding / Wet Out
- Battery Pressure Mapping
- Fuel Cell
Human Body Interface
- Seating Pressure Mapping
- Mattress / Bed Pressure Mapping
- Human Body Interface
- Biomechanics & Human Movement
- Foot / Insole
- Hand Grip / Glove
- Patient Movement Monitoring
- Horse Saddle Pressure Mapping
Electronics
- PCB
- Connector Interface
- Heat Sink / Thermal Interface
- LCD / Display Bonding
- Wafer Polishing / Bonding
- Semiconductor Packaging / Bonding
- BGA / Flip Chip
- Temperature Mapping
Aerospace
- Composite Layup
- Adhesive Bonding / Wet Out
- Bolted Joint / Gasket / O-Ring
- Clamping
- Impact Pressure
- Fuel Cell
- Temperature Mapping
- Heat Sink / Thermal Interface
